PVC Edge Banding Tapes Extrusion Production Making Machine Sheet
Type PVC Edge Banding Tape Sheet Making Machine with Slitting
MachineTapes Extrusion Line Extruder Machine

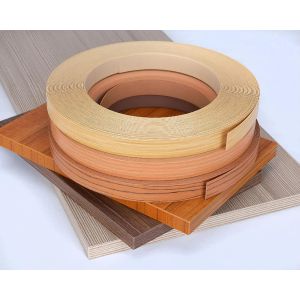

Application product PVC Edge Banding:
PVC edge banding are widely use in furtinure,kitechen utensils and
appliance teaching equiprement, laboratory cabinet desk decoration.
Production Flow:
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → Cooling →Printer → Haul-off Unit →cutter →stacker
Equipment Features:
For extruder Temperature Control system,Digital PLC control or
Manual Temperature Control Meter
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance
Main Model
| Model | YF120 | YF180 |
| Max. Product with(mm) | 200 | 300 |
| Max. Product height(mm) | 6mm | 10mm |
| Extruder model | SNJZ51/105 | SNJZ65/132 |
| Vacuum pump | no | no |
| Water pump | 1.1kw | 1.1kw |
| Hual-off motor | 1.1kw | 1.5kw |
Machine list
| Feeder | • To feed material into extruder; |
| Extruder | • World famous brand electrical component: Siemens, Schneid er, ABB
etc;
• High torque gearbox with adopts NSK/SK F bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface. |
| Die head | • 3Cr13/3Cr17 material
• Complete set include extrusion die head, calibrator and cooling
tank
• Adopt to single, co-extrusion, foam imitation marble profile |
| Cooling table | • Include full set of vacuum and water pump
• Width: 240mm
• Length: 6000mm
• Independent operation panel for easy operation |
| Haul off | • Upper/lower caterpillar driven separately and speed control by
inverter
• Fast change type pads for easy operation
• Install plate is adopts aluminum material |
| Cutter | • Lifting saw cutter with adopts double station dust collection
system
• Synchronous drivingby air cylinder or servo motor control |
| Stacker | • Stainless steel304 as touching material
• Discharge driving by air cylinder |
| Hot stamping machine | • Decorative pattern and film protection of product surface |
Technical information
| Parts | No. | Name | Brand |
| 1 Screw and barrel | 1 | Design | German design |
| 2 | Main materials | 38CrMoALA |
| 3 | Screw heating | Silicon oil heating |
| 4 | Barrel heater | Cast aluminum heater |
| 5 | Barrel has vacuum exhausting system |
| |
| 2 Driving parts | 1 | Main motor | Siemens Brand |
| | 2 | Gear box | Top brand in China |
| |
| 3 Electric parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schnei der brand |
| 3 | Relay | Schnei der brand |
| 4 | Breaker | Delixi brand |
| 5 | Temperature meter | RKC brand |
| 6 | Hauling motor | Densen brand |
| 7 | Hauling gear box | Hard surface gear box |
| 8 | Vacuum pump | Yvhuang brand |
| 9 | Water pump | Yvhuang brand |
| 10 | Cutting motor | Siemens brand |
| 11 | PLC | Schnei der brand |
| |
| 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts |
| |
| 5 Protection system | We have a whole set of protection system for our machines, such as:
1 Current overload protection
2 Torque overload protection
3 Oil path blocking alarm
4 Vacuum overload alarm, and so on. |
| For more technical information please contact us by email. |
Are you a trading company or factory? Can I have a factory
visiting?
We are a factory that produces machines for customers directly.
Yes, our production plant can be visited at any time. We are in
Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you
are near to us, the pick-up service is available.
How to build trust with Langbo
We can send working videos showing the machine running perfectly in
several countries for online communication. We will provide
customer-focused and tailored technical suggestions.
For offline contact, you can visit our factory and talk about the
machine face to face, you can find our competence in the field of
plastic extrusion and tell our ability in machine building.
Is the shipping cost included in the quotation?
Usually, our quotation contains FOB Shanghai as a shipment
condition. This means the shipping cost between the delivery and
destination ports will not be included in the quotation. The
shipping cost fluctuates according to the delivery company and
shipping date. Langbo can help customers to get the latest shipping
price. Customers decide if we add the shipping cost to the
quotation or choose a shipping agent by themselves.
What will happen after order confirmation
confirmation of Configuration
Sign of Proforma invoice
30% of total price pre-payment for production starting
Test running in the house, customers on-site or video connecting
Confirmation of machine condition
70% of the total price for delivery preparation
Confirmation of Delivery date
Shipping to customer
On-site commissioning
Training in machine operation and maintenance
Confirmation of handover
One year guarantee
Whole lifecycle service and technical support
What is the Payment Method?
T/T, D/P, Letter of credit, Cash transaction
How to guarantee the machine quality made by Langbo
We provide one year guarantee and whole-lifecycle technical support
for our product. During in-house test running, customers can check
the machine on-site. Any point for optimization will be done
immediately.
How can customers get the exact machine as they wish?
Factory visiting before order
Product sample posting to Langbo for a better understanding of
customer's expectations and configuration communication
On-site checking during test running
Do you have CE Certification?
Yes. Both our extrusion machine and plastic recycling machine have
CE Certification.
What is the delivery time between order confirmation and delivery?
Usually 45 days. Depended on the certain project, the exact
delivery time will be wrote on contract.
What are services for after-sale
One-year quality guarantee.
Quick response for technical support
Problem analysis for production problems
What means one-year quality guarantee
After the handover of the machine, Langbo provides free new parts
for every non-man-made damage.
How to get the required area of the machine?
For a new plant, you can contact me. (whatsapp After knowing your demand, I can make the detailed
solution and layout of the machine line. Meanwhile, I will provide
technical guidance of your installation and specification.
