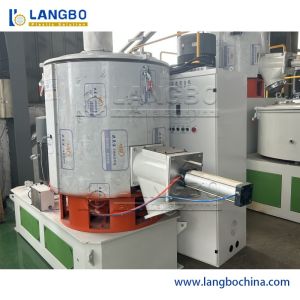

Multi-Application PVC Compound Mixer: Engineered for Profile, Pipe
& Board Production
Short description:
Plastic High Speed Heating Cooling WPC PVC Powder Resin Turbo Mixer
Machine for PVC pipe, window door profiles, ceiling panel, cable
trunking, marble sheet.
Suitable for plastics, rubber, chemical and food industry, for
power or granulate material blending, coloring and drying. Typical
application includes: production of PVC dry blend, filling and
modification of plastics, pre-mixing of compounding process and
premix of wood-plastic Composites.
Features
All important parts (bow, mixing tool, control) are manufactured in
our company, which ensure the quality of machine.
All material in contact with product is SUS304 or aluminum alloy
and the product will not be contaminated.
High cooling efficiency, short mixing time, easy and convenient to
clean high output.
Mixing tool can be designed according to different application.
Mixing tool coated with wear-resistant material, which can increase
service life and past dynamic and balance test, running smoothly.
Rapid, perfect after-sales service.
Product details:

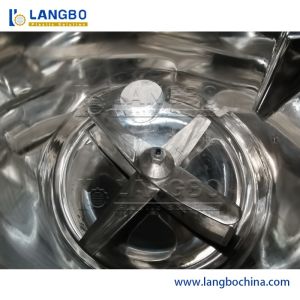

1)The Blade is made of stainless steel, formed by dynamic and
static balance refining.
2)Cap is double sealing, start by pneumatic, easy operation.
3)Cylinder is made of stainless steel, wall thickness up to 8 mm.
4)Discharge is in temperature auto control or time control.
5)Motor start and speed regulation is governed by the ABB inverter,
to avert the excessive power that caused by high power motor start
to impact on the electric network, so as to protect the electric
network and to achieve a smooth speed control.
6)With direct & stable control type and analog display screen
display, the staff can complete the set work for the different
mixing material requirements within a few seconds, realizing the
full automation of the manufacturing procedure, which greatly
reduce labor intensity and production costs.
7)Direct & stable control type of the production line ends up the
unsuitable discharge that the temperature is too high or too low,
so as to ensure the good product quality and improve the production
flexibility, security and reliability.
Main models of pvc mixer machine:
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 |
| Total capicity(L) | 100/200 | 200/500 | 300/600 | 500/1000 |
| Mixing capicity(kg/h) | 165 | 325 | 500 | 750 |
| MOtor power(kw) | 14/22/7.5 | 30/42/11 | 40/50/15 | 47/67/15 |
| Paddle speed(r/min) | 650/130/180 | 475/950/130 | 475/950/130 | 430/860/60 |
| SRL-Z800/1600 | SRL-Z800/2500 | SRL-Z1000/3000 | SRL-Z1300/4500 |
| 800/1600 | 800/2500 | 1000/3000 | 1300/4500 |
| 1400 | 1400 | 1900 | 2500 |
| 60/90/18.5 | 80/110/30 | 110/160/37 | 132/200/45 |
| 370/740/50 | 370/740/50 | 325/650/50 | 250/500/50 |
Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case
Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service
overseas.
4. After a year, we can instruct you how to maintain the machine,
and spare parts are provided with the best price.
5. We also can provide training service which help operators handle
the machine well.
