Plastic Recycling PP PE Film Single Screw Pelletizing Granulating
Machine
short description
This line is mainly used for producing pellets. Through extruding,
making stand, cooling and cutting into pellets, the storage of the
pipes raw material is more convenient. In the recent years, the
sales market for pellets is also excellent. Our granulating line
used including extruder, cooling tank, air knife, pelletizer and
vibration sieve. All the components are top-brand quality and long
working lifetime.
Process Flow
Raw material+ additive → Mixing → Conveying feeding → hopper
feeding → Conical twin screw extruder → Hot face cutting → Cyclone
separator → Vibration sieve → Blowing system → Storage hopper →
Finished product packing
Specification
Model | Diameter(mm) | L/D | Speed(rpm) | Power(kw) | Output(kg/h) |
LB40-B | 41 | 24-80 | ~600 | 30~37 | 100~130 |
LB52-B | 51.4 | 24-80 | ~600 | 55~75 | 150~250 |
LB65-B | 62.4 | 24-80 | ~600 | 90~110 | 300~400 |
LB75-B | 71 | 24-80 | ~600 | 132~160 | 400~500 |
LB85-B | 81 | 24-80 | ~600 | 220~250 | 700~800 |
LB90-B | 93 | 24-80 | ~600 | 280~315 | 900~1000 |
LB110-B | 110 | 24-80 | ~600 | 400~450 |
|
Production Description

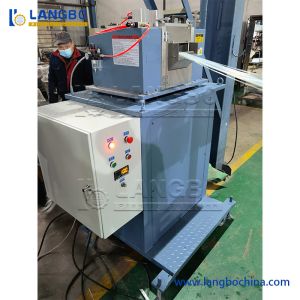

Pelletizer
Pelletizers are completely made of AISI 304 stainless steel.
Pelletizing blades and die are made of special alloy steels and
coatings according to the type of plastic. By mobile parts,
maintenance period is minimized. Speed control for pelletizing
blades enables changing granule size during operation.
Vibration Sieve
Granules' size controlled by vibration sieve too small or too big
granules will be flited out. The only granules, which fit the size
requirement will be transported into storage silo by air.

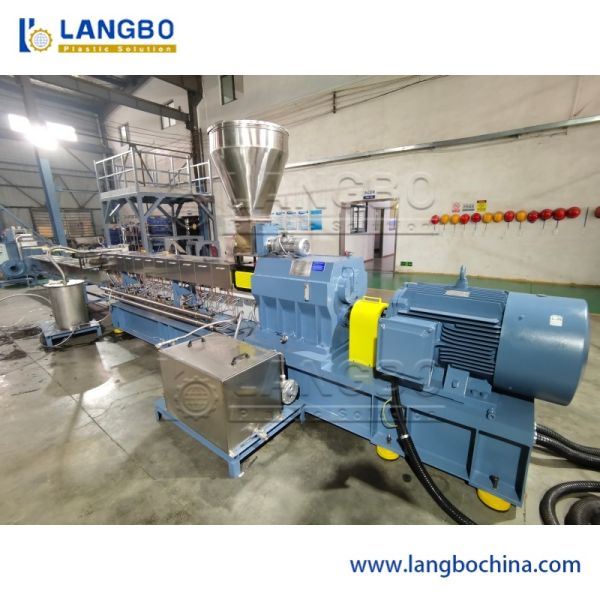

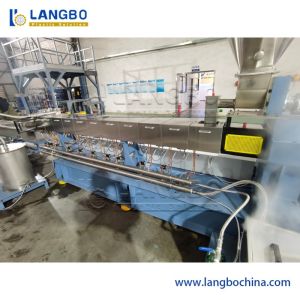

Parallel Twin Screw Extruder
Heavy Load Gearbox for reliable running
High precise screw part for excellent screw building
High quality electrical parts and worldwide famous brand for drive
unit
Easy Temperature setting and indication
Degassing section for tailored processing demand

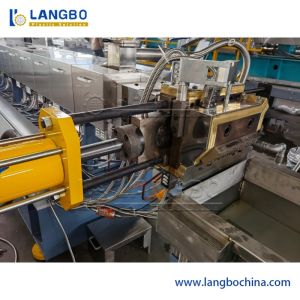

Hydraulic Melt filter Mould
304 Steel screens with tailored mesh size
Hydraulic plate or cylinder filter body available
Bronze heater for high heating efficiency
Water Tank Tempering
Water cycle for evenly temperature distribution and well cooling
effect
Strand Holders adjust strand in the water for cooling and out of
the water for drying
Advanced manufacture technology for robust structure and precise
adjustment

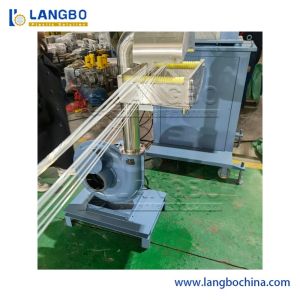

Air Knife
High speed knife for strand dewatering
