Brand Name : | LB |
Model Number : | LB-1000 |
Certification : | CE,ISO |
Payment Terms : | L/C, T/T, |
Supply Ability : | 15 SETS PER MONTH |
Delivery Time : | 45 WORKING DAYS |

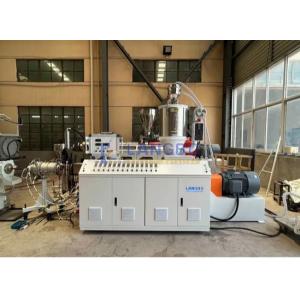

PE NATURAL GAS TUBE EXTRUSION MACHINE WITH SINGLE SCREW EXTRUDER
Application:
Water and gas supply, micro&sprinkler irrigation system,
sewerage pumping and effluent disposal system.
Properties & Advantages:
The pipes produced by this line have excellent hardness and
flexibility. Their diameters vary from 16mm to 1200mm. The line

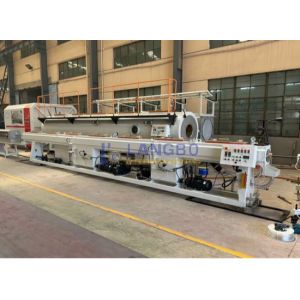

consists of control system, extruder, die, vacuum calibration unit,
hauling-off and planetary cutting system and stacker.
Two extruders are utilized in this line. The main extruder is used
to extrude the large diameter pipes and the other small one is used
to extrude the mark line.
Basket or spiral type composite die is used in this line. PLC
control system and large chromatic liquid crystal screen make the
operation very convenient.
Process flow:
Raw material+master batches--mixing--vacuum feeding--material
dryness--single screw extruder--mark line
extruder---mould--calibrator---vacuum spray calibration
tank---spray cooling water tank---color-ribbon printer--pedrail
haul-off--planetary cutter--stacker---finished product
inspecting&packing
SPECIFICATIONS:
MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER |
LB-63 | 20-63 | SJ65/33 | 55AC |
LB-110 | 20-110 | SJ65/33 | 55AC |
LB-160 | 75-160 | SJ75/33 | 90AC |
LB-250 | 90-250 | SJ75/33 | 110DC |
LB-315 | 110-315 | SJ90/33 | 160DC |
LB-450 | 160-450 | SJ90/33 | 160DC |
LB-630 | 315-630 | SJ120/33 | 280DC |
LB-800 | 500-800 | SJ150/33 | 315DC |
LB-1200 | 710-1200 | SJ150/34 | 400DC |
All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from
a single source.
Volumetric and gravimetric dosing units |
Raw material loading units |
Belling machines |
Corrugators |
Ink jet marking units |
Winding units |
Tilting tables |
![]() |
